LWD Log Headers – 3 Styles to Suit Your Requirements

Mezintel Gamma features three LWD log header styles with variation in format, bit run holding capacity, and content (e.g. emphasis on either casings info or mud properties).
A brief summary of these three headers is as follows:

1. Standard Header

LWD Log Header

Basic header for logs with 6 bit runs maximum.

The standard header is a brief, suitable for short jobs with a maximum of six bit runs. This header includes all baseline info for an MWD/LWD drilling job as shown here.

2. Extended Header with Casings Table

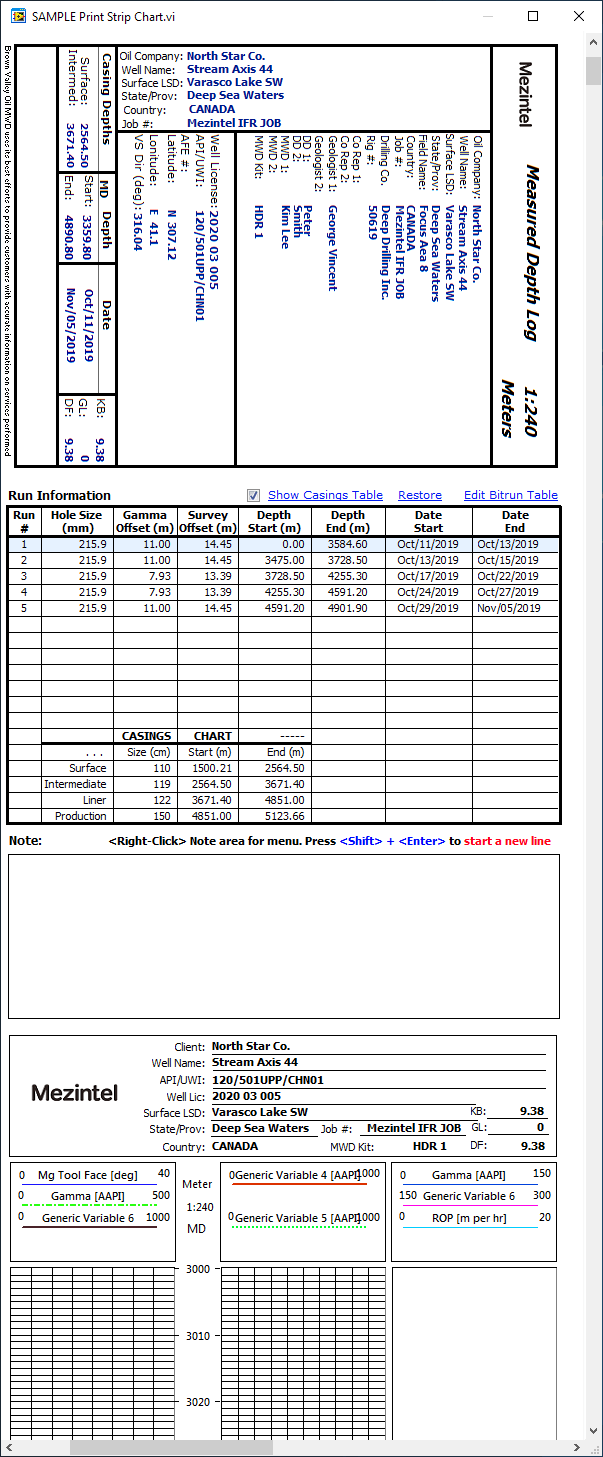

MWD Log Header with Casings

Extended header with casings table enabled to show.

This header is extended, with increased bit run holding capacity to 19 bit runs and with option to include casings table. It holds 15 bit runs if casings table is included.

3. Extended Header with Mud Properties

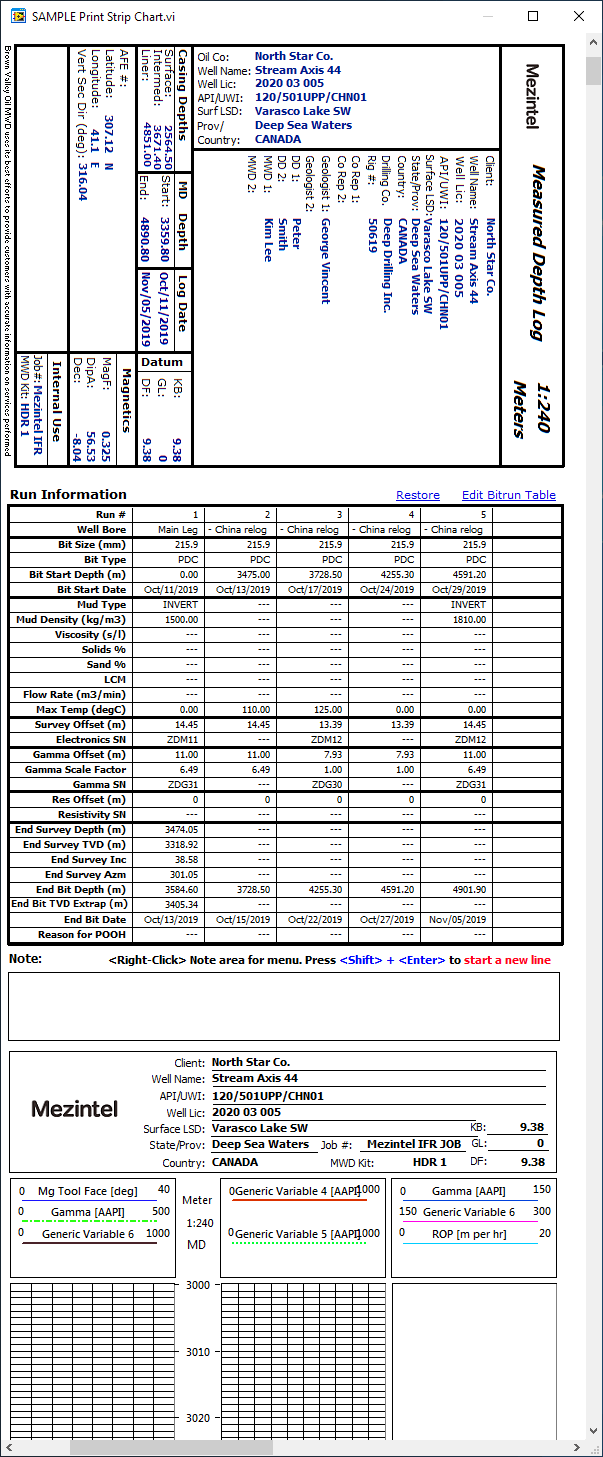

MWD Log Header with Mud Properties

Extended header with mud info included for each bit run, up to 24 runs.

This extended header includes mud properties and will accommodate 24 bit runs. It can produce up to four bit run tables, each with slots for six bit runs, for a total of 24 bit runs.

With Mezintel Gamma you have the flexibility to use 3 different LWD log header formats of increasing detail and content. In addition to the standard baseline header info, casings info and mud properties by the bit run are emphasized in header styles #2 and #3.
